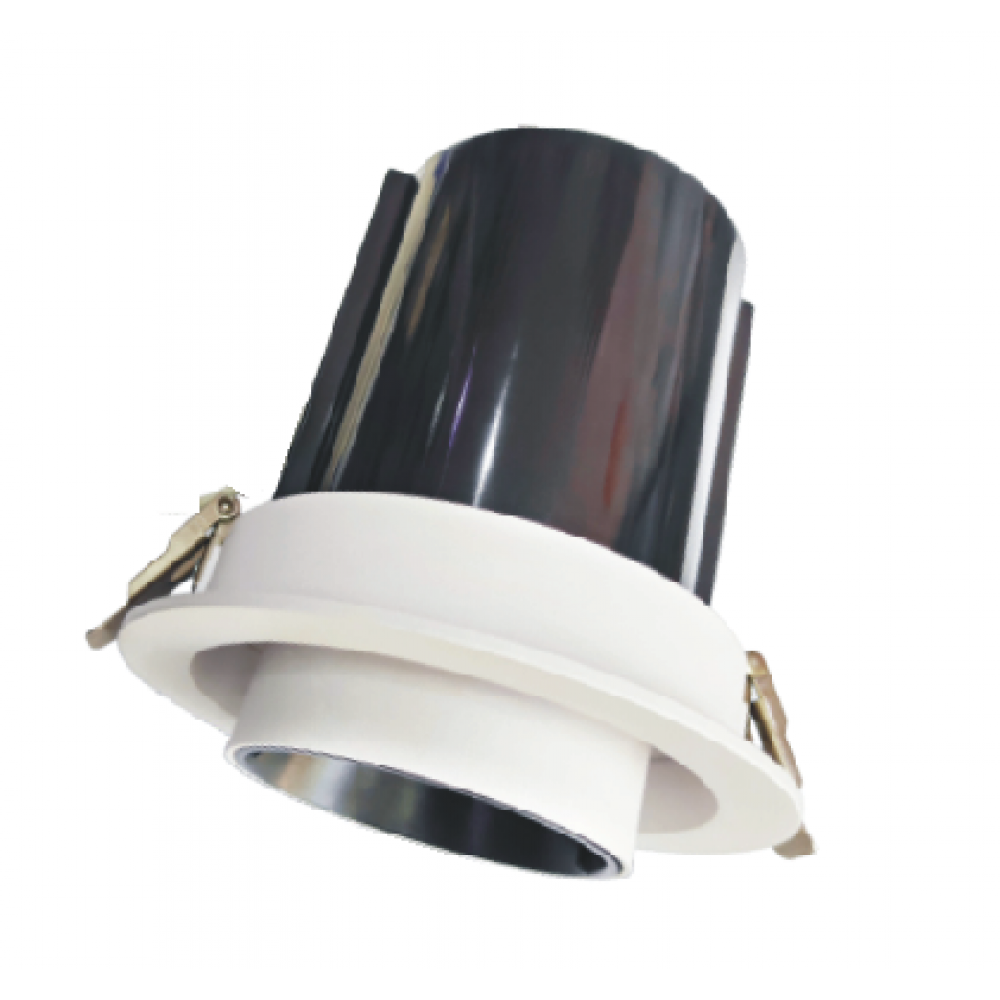

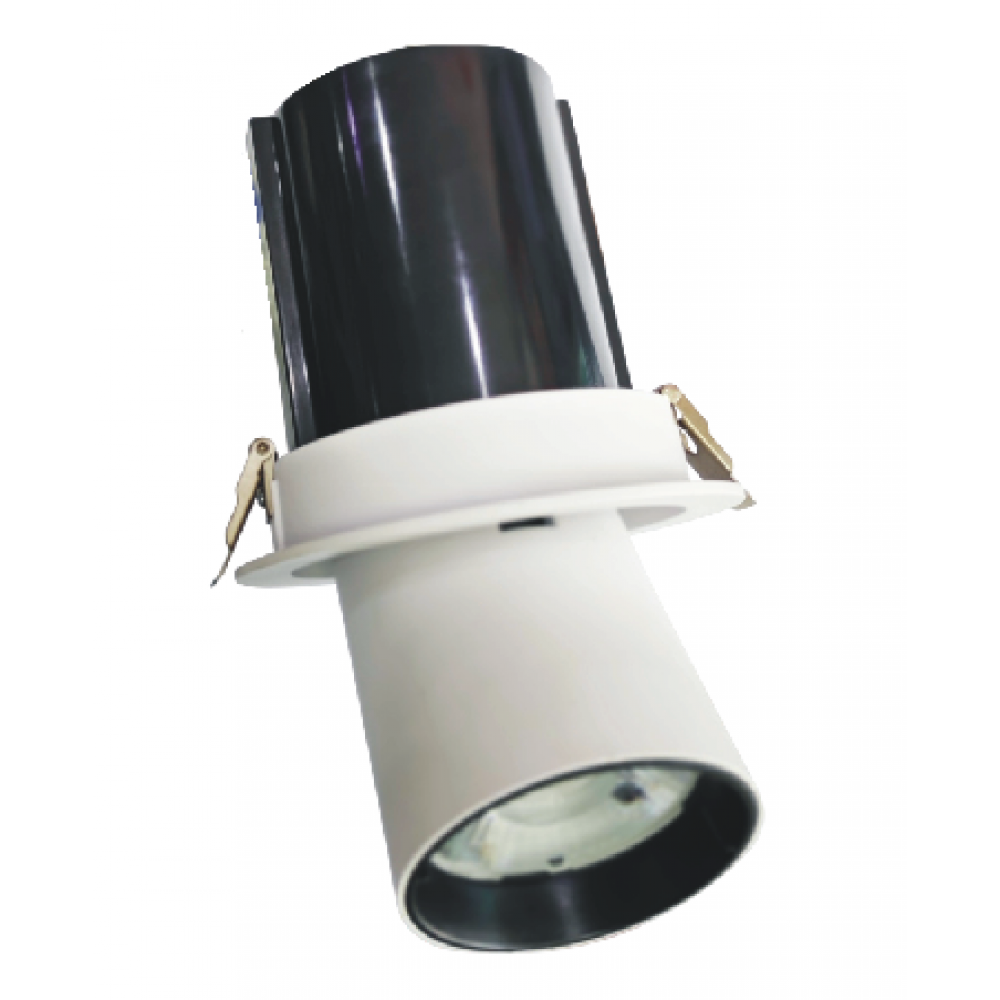

Installation method：recessed.
Protection level: IP20
Lamp category: ∥ class
Light source type: COB
Shell body: Die cast aluminum
Reflective cup: professionally designed by TRACE-PRO based on the principle of reflection, it can achieve efficient luminescence.
Diffuser: PC lens.
Driver: Adopting isolated flicker free constant current drive power supply, different brands of drive power supply can be selected.
It can be widely used in shops, hotels, offices, exhibition halls, restaurants and other places.
| Product Code | Voltage | Input/Output | CRI | CCT | IES | Lumen Output | Beam Angle | Dimensions (mm) | Inquiry |
 |
AC220-240V | 24W | ≥80 | 3000K 4000K 6400K | 2400LM 2500LM 2600LM | 24° | Ф135*H140mm | ||
|
|
AC220-240V | 19W | ≥80 | 3000K 4000K 6400K | 1900LM 1950LM 1980LM | 24° | Ф110*H115mm | ||
|
|
AC220-240V | 13W | ≥80 | 3000K 4000K 6400K | 1260LM 1300LM 1340LM | 24° | Ф90*H88mm |
