Item No.：WTR060

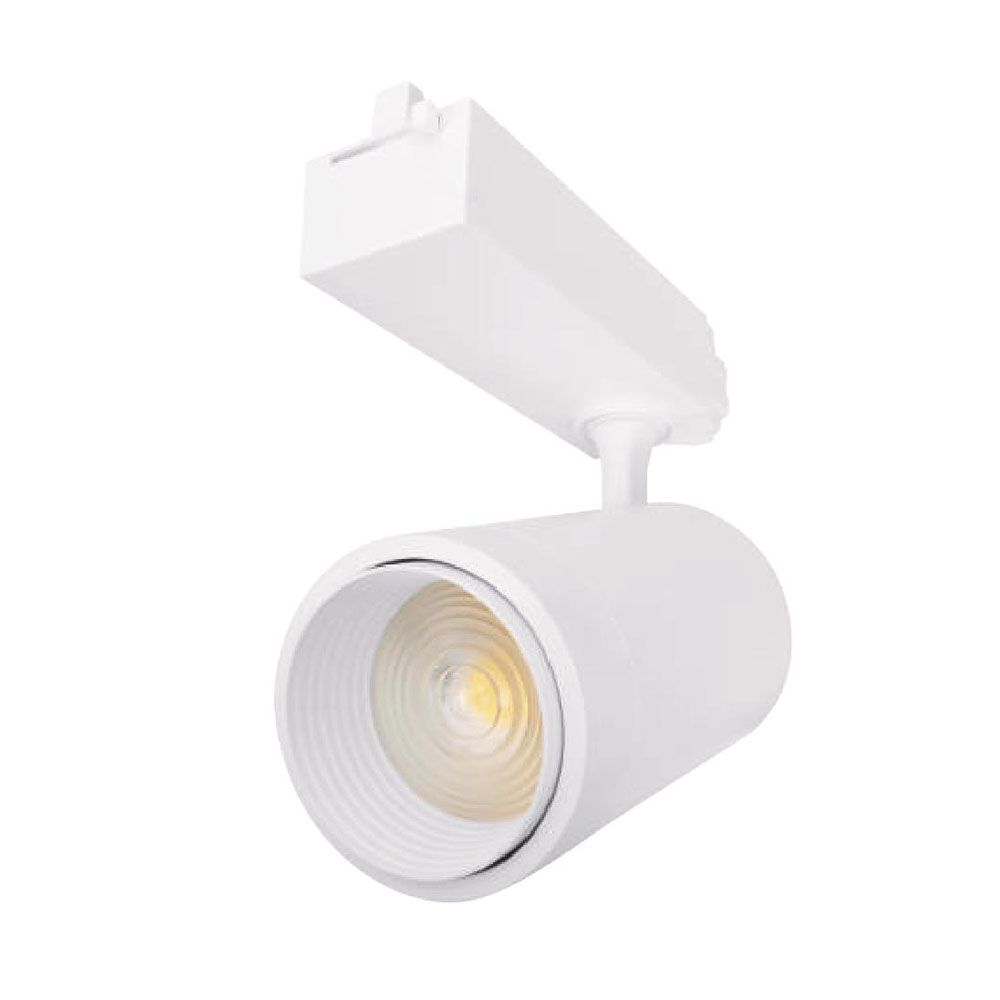

Item Name：Track Lights

Specification

Light source:MCOB

Shell：adopts high-quality die-casted aluminum, performs well in cooling.

Shape: looks elegant and natural. The two movable rings can adjust at X and Y direction by ±40 degrees.

Reflector: professionally designed by TRACE-PRO according to reflection theory, the light can be performed in highest efficiency.

Diffuser: cover by glass, at 95% transmission rate.

Constant current control driver; outputs constant current, in low power consumption. It’s directly attached on the lamp shell.

Output light:constant, without glare. Light consumption is less than 3% after 2000 hours lighting.

Beam angle: 15-60 degrees

Widely used for main lighting, applied in shops, hotels, offices, exclusive shops, showrooms and so on.

Share this product :

Product Information

Product Code	Function	Voltage	Input/Output	CRI	CCT	IES	Lumen Output	Beam Angle	Dimensions (mm)	LED rail system	Inquiry
WTR060-1SL15W-TC	Standard	AC100-240V	15.2W/12.6W	≥80	6400K 4000K 3000K		1680LM 1600LM 1520LM	15°-60°	12562140	3line 4line（optional） DALI（optional）	Inquiry
WTR060-1SL15W-MCT	Mechanical switch control CCT	AC100-240V	15.2W/12.6W	≥80	6400K 4000K 3000K		1680LM 1600LM 1520LM	15°-60°	12562140	3line 4line（optional） DALI（optional）	Inquiry
WTR060-1SL15W-MCTDIM	Mechanical switch control CCT & dimmable	AC100-240V	15 15.2W/12.6W	≥80	6400K 4000K 3000K		1680LM 1600LM 1520LM	15°-60°	12562140	3line 4line（optional） DALI（optional）	Inquiry
WTR060-1SL15W-SCT	Switch control CCT	AC100-240V	15.2W/12.6W	≥80	6400K 4000K 3000K		1680LM 1600LM 1520LM	15°-60°	12562140	3line 4line（optional） DALI（optional）	Inquiry
WTR060-1SL15W-SCTDIM	Switch control CCT & dimmable	AC100-240V	15.2W/12.6W	≥80	6400K 4000K 3000K		1680LM 1600LM 1520LM	15°-60°	12562140	3line 4line（optional） DALI（optional）	Inquiry
WTR060-1SL15W-RMCDIM	Intelligent remote control	AC100-240V	15.2W/12.6W	≥80	6400K 4000K 3000K		1680LM 1600LM 1520LM	15°-60°	12562140	3line 4line（optional） DALI（optional）	Inquiry
WTR060-1SL15W-DIM	Triac dimmable	AC100-240V	15.2W/12.6W	≥80	6400K 4000K 3000K		1680LM 1600LM 1520LM	15°-60°	12562140	3line 4line（optional） DALI（optional）	Inquiry
WTR060-1SL15W-DALDIM	DALI dimmable	AC100-240V	15.2W/12.6W	≥80	6400K 4000K 3000K		1680LM 1600LM 1520LM	15°-60°	12562140	3line 4line（optional） DALI（optional）	Inquiry
WTR060-1SL15W-FRE	Fresh light	AC100-240V	15.2W/12.6W	≥80	6400K 4000K 3000K		1680LM 1600LM 1520LM	15°-60°	12562140	3line 4line（optional） DALI（optional）	Inquiry
WTR060-2SL26W-TC	Standard	AC100-240V	27.2W/23.4W	≥80	6400K 4000K 3000K		3000LM 2850LM 2700LM	15°-60°	16090200	3line 4line（optional） DALI（optional）	Inquiry
