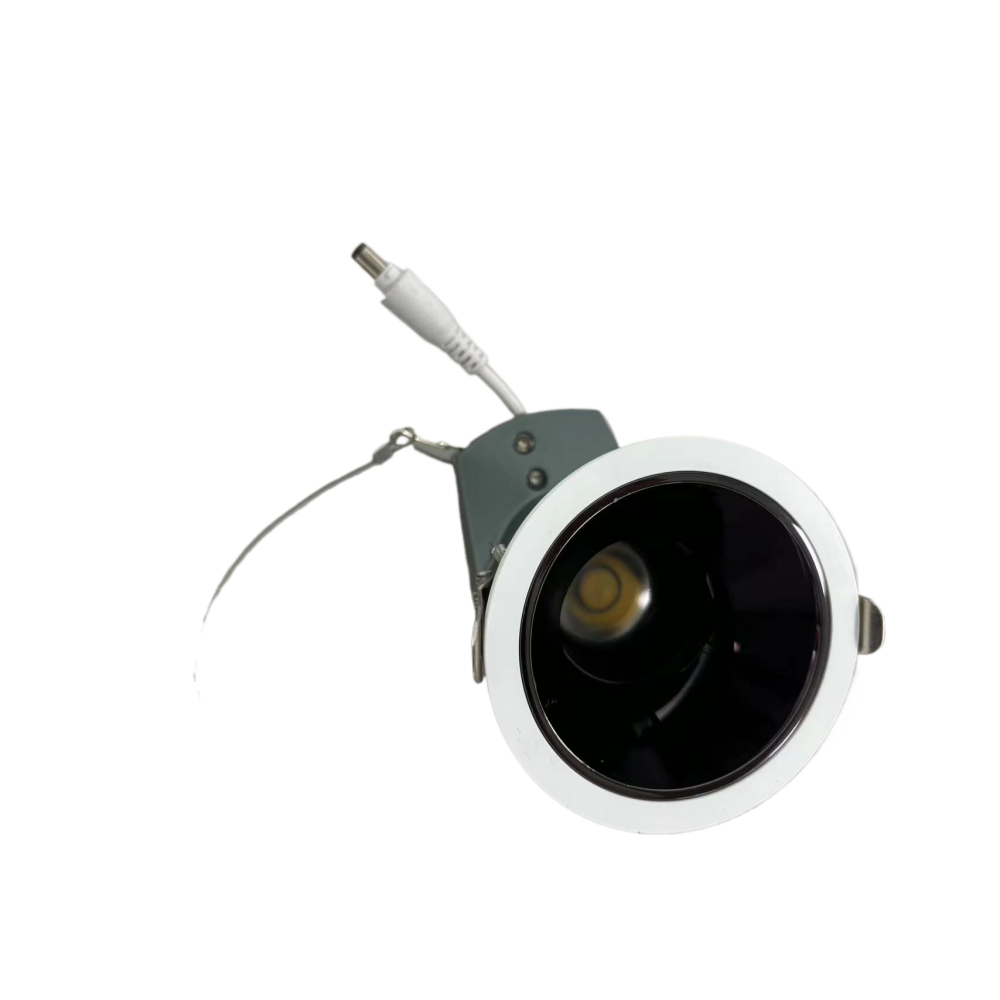

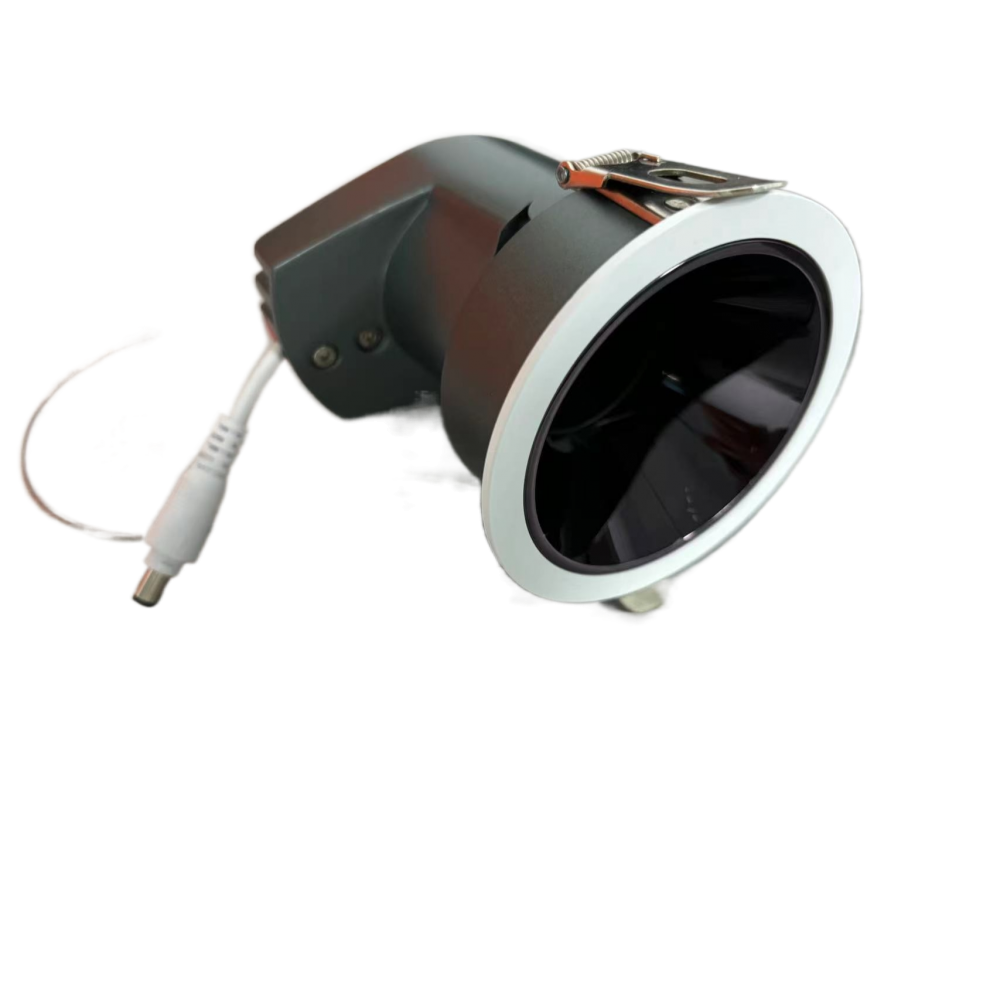

Installation method：recessed.
Protection level: IP20
Light category: ∥ class
Light source : COB
Shell body: Die cast aluminum
Reflector: professionally designed by TRACE-PRO based on the principle of reflection, it can achieve efficient luminescence.
Diffuser: Glass.
Driver: Adopting isolated flicker free constant current drive power supply, different brands of drive power supply can be selected.
Widely used in shops, hotels, offices, exhibition halls, restaurants and so on.
| Product Code | Voltage | Input/Output | CRI | CCT | IES | Lumen Output | Beam Angle | Dimensions (mm) | Cut Size (mm) | Inquiry |
| WL6707-4SL20W-B | AC220-240V | 20/18W | ≥80 | 3000K 4000K 6500K | 2000lm 1100lm 2200lm | 24/38° | φ105*H120mm | φ95 | ||
| WL6707-3SL12W-B | AC220-240V | 12/10W | ≥80 | 3000K 4000K 6500K | 1100lm 1150lm 1200lm | 24/38° | φ85*H92mm | φ75 | ||
| WL6707-2SL8W-B | AC220-240V | 8/6.5W | ≥80 | 3000K 4000K 6500K | 720lm 750lm 780lm | 24/38° | φ64*H87mm | φ55 |
