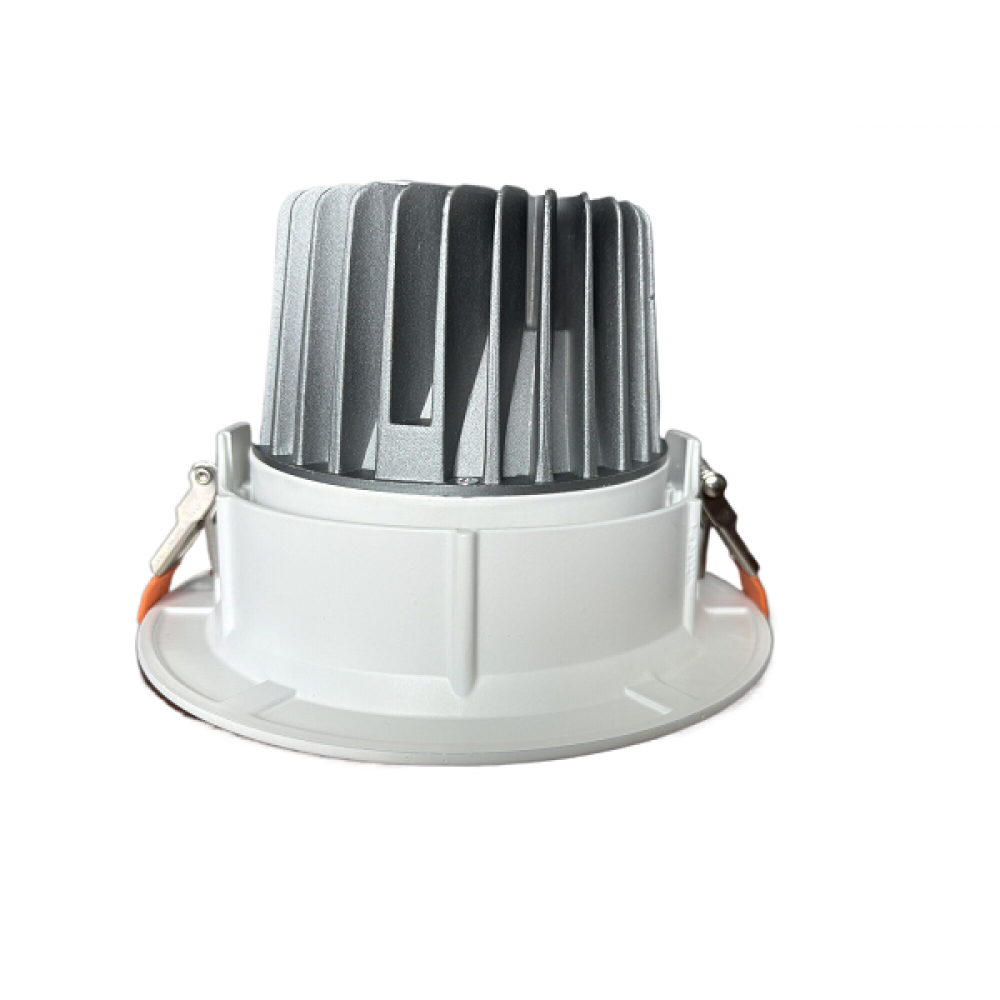

Installation method: Recessed.
Protection level: IP20.
Light category: ∥ class.
Light source type: COB.
Shell body: aluminum.
Reflector: professionally designed by TRACE-PRO according to reflection theory,the light can be performed in highest efficiency.
Diffuser: glass.
Driver: Adopting isolated flicker free constant current driver supply, different brands of driver supply can be selected.
Widely used in shops, hotels, offices, exhibition halls, restaurants and so on.
| Product Code | Voltage | Input/Output | CRI | CCT | IES | Lumen Output | Beam Angle | Dimensions (mm) | Cut Size (mm) | Inquiry |
 |
AC220-240V | 25/23W | ≥80 | 3000K 4000K 6500K | 2750LM 2900LM 3050LM | 36° | φ175*H118mm | φ150-160mm | ||
|
|
AC220-240V | 15/13.5W | ≥80 | 3000K 4000K 6500K | 1600LM 1700LM 1800LM | 36° | φ140*H105mm | φ120-130mm | ||
|
|
AC220-240V | 10/9W | ≥80 | 3000K 4000K 6500K | 1050LM 1100LM 1150LM | 36° | φ100*H85mm | φ85-90mm | ||
|
|
AC220-240V | 7.5/6.5W | ≥80 | 3000K 4000K 6500K | 800LM 820LM 840LM | 36° | φ85*H70mm | φ75-80mm |
Lifud
OSRAM
