Location : Home>Products>Commercial>Down Lights
Loading...
Item No.:MH6331-ES

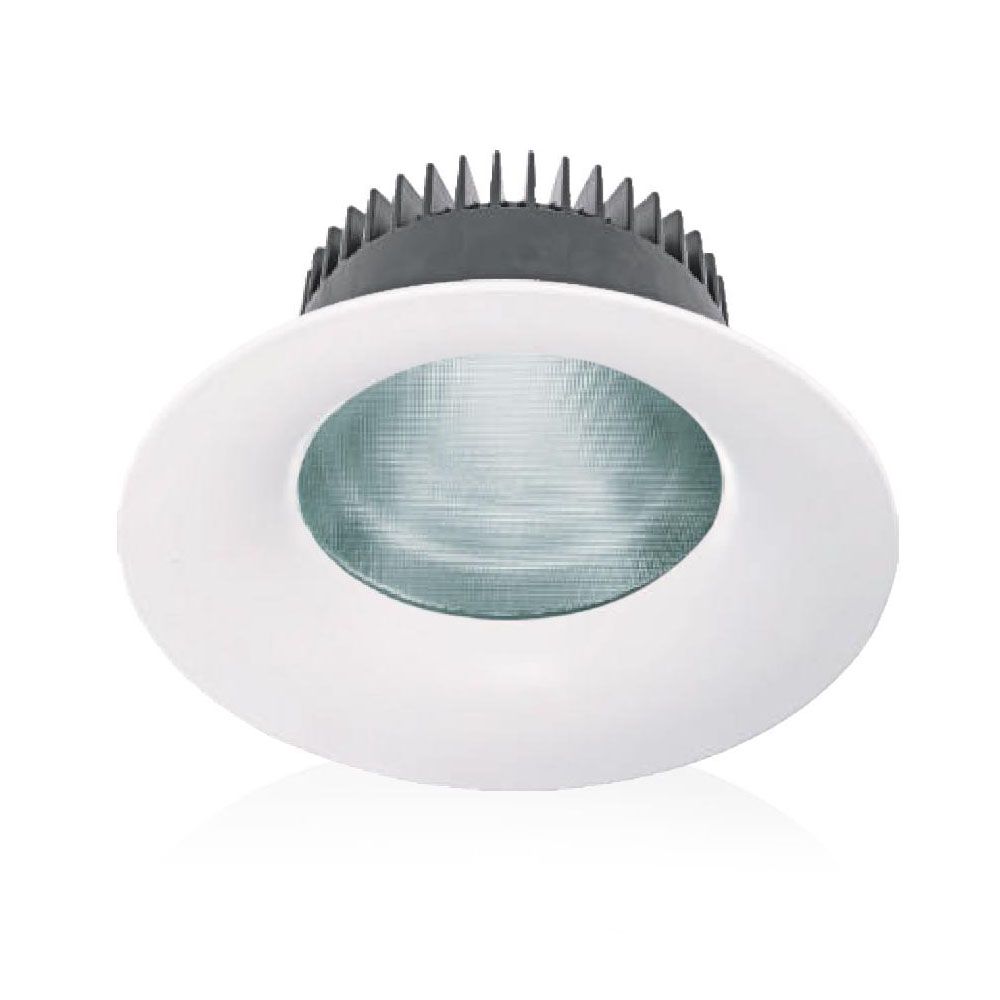

Item Name:Down Lights
Specification

Light source: SMD

Lamps shell adopts high-quality die-casted aluminum, performs well in cooling.

Shape:looks elegant and natural

Reflector:professionally designed by TRACE-PRO according to reflection theory, the light can be performed in highest efficiency.

It's available to apply in dimmable or emergency mode.

Remote constant current control driver; outputs constant current, in low power consumption.

Diffuser:cover by glass, at 95% transmission rate

Output light:constant, without glare. Light consumption is less than 3% after 2000 hours lighting.

Widely used for main lighting, applied in shops, hotels, offices, exclusive shops, showrooms and so on.

Body coatings:RAL9016 matt WH, matt grey, satin-Ni.


Share this product :
Product Information
Product Code Voltage Input/Output CRI CCT IES Lumen
Output
Beam
Angle
Dimensions
(mm)
Cut Size
(mm)
Inquiry
MH6331-2ES8W
AC100-240V 9W/8W ≥80

3000K

4000K

3000K

810LM

770LM

730LM

60° Φ93*55 Φ75
MH6331-6ES15W
AC100-240V 17W/15W ≥80

6400K

4000K

3000K

1530LM

1450LM

1380LM

60° Φ180*90 Φ160
MH6331-8ES25W
AC100-240V 28W/25W ≥80

6400K

4000K

3000K

2520LM

2400LM

2270LM

60° Φ230*115 Φ200
MH6331-8ES35W
AC100-240V 39W/35W ≥80

6400K

4000K

3000K

3510LM

3330LM

3170LM

60° Φ230*115 Φ200
MH6331-8ES50W
AC100-240V 56W/50W ≥80

6400K

4000K

3000K

5040LM

4790LM

4550LM

60° Φ230*115 Φ200
