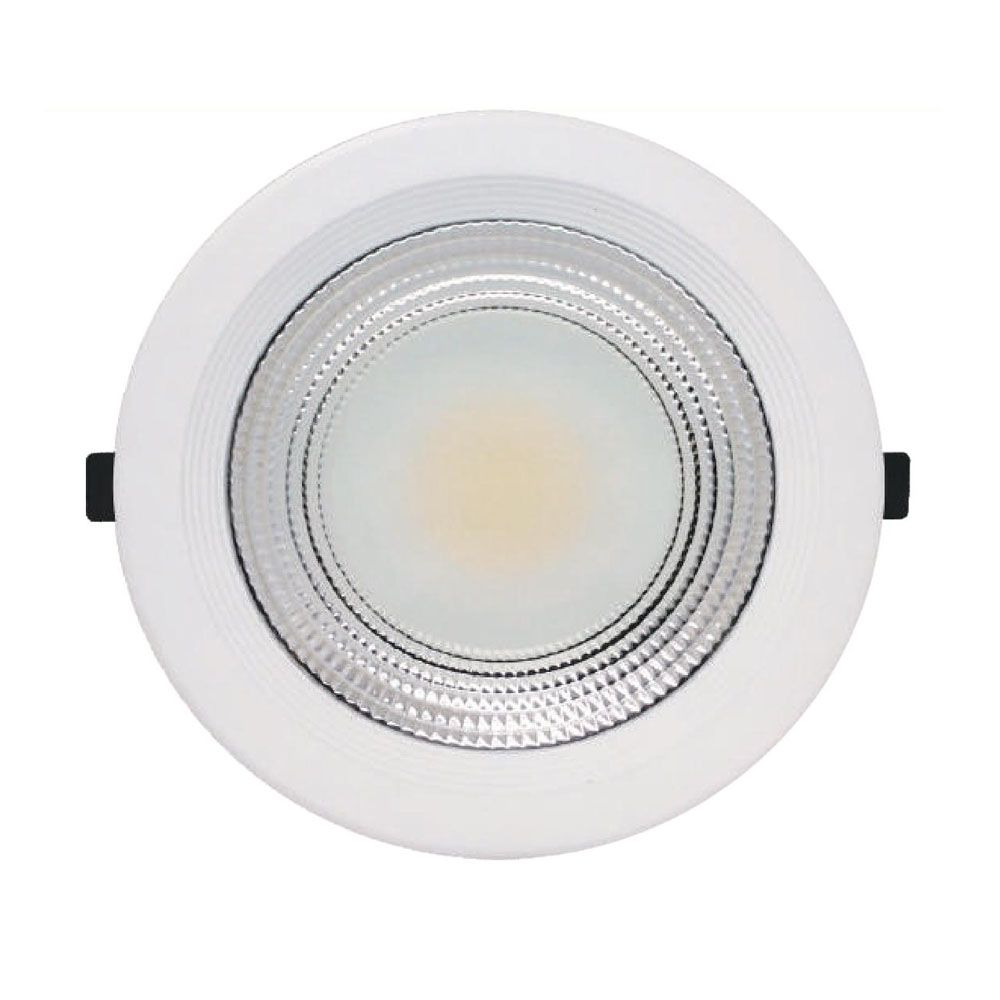

Light source:MCOB
Lamps shell adopts high-quality die-casted aluminum, performs well in cooling.
Shape:looks elegant and natural
Reflector:professionally designed by TRACE-PRO according to reflection theory, the light can be performed in highest efficiency.
It's available to apply in dimmable or emergency mode.
Remote constant current control driver; outputs constant current, in low power consumption.
Different kinds of dimming control and emergency are available.
Output light:constant, without glare. Light consumption is less than 3% after 2000 hours lighting.
Widely used for main lighting, applied in shops, hotels, offices, exclusive shops, showrooms and so on.
Body coatings: RAL9016 matt WH, matt grey, satin-Ni.
Product Code | Voltage | Input/Output | CRI | CCT | IES | Lumen Output | Beam Angle | Dimensions (mm) | Cut Size (mm) | Inquiry |
MH1133-4SL10W | AC100-240V | 11W/10W | ≥80 | 6400K 4000K 3000K | 1210LM 1150LM 1090LM | 65° | Φ115*50 | Φ90 | ||
MH1133-6SL15W | AC100-240V | 17W/15W | ≥80 | 6400K 4000K 3000K | 1870LM 1780LM 1690LM | 65° | Φ190*50 | Φ170 | ||
MH1133-8SL25W | AC100-240V | 28W/25W | ≥80 | 6400K 4000K 3000K | 3080LM 2930LM 2780LM | 65° | Φ220*57 | Φ200 | ||
MH1133-8SL35W | AC100-240V | 39W/35W | ≥80 | 6400K 4000K 3000K | 4290LM 4080LM 3870LM | 65° | Φ220*57 | Φ200 |
