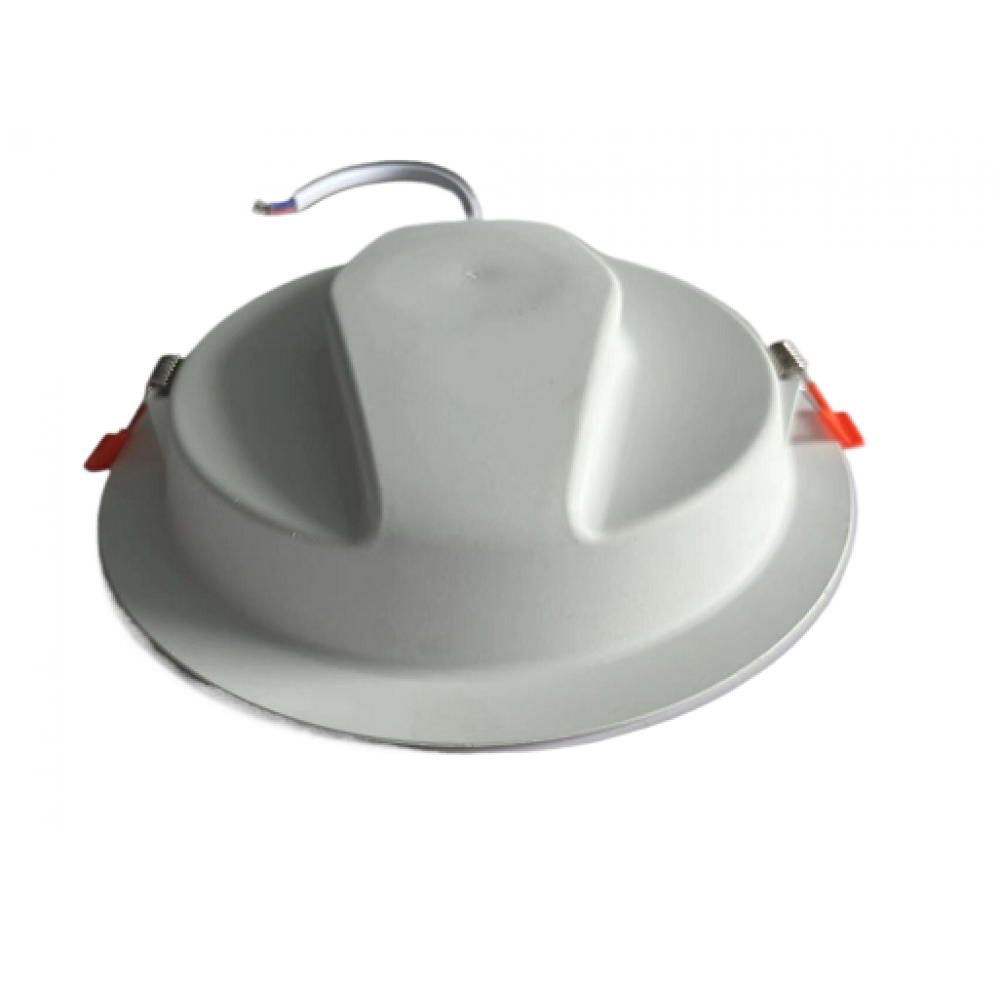

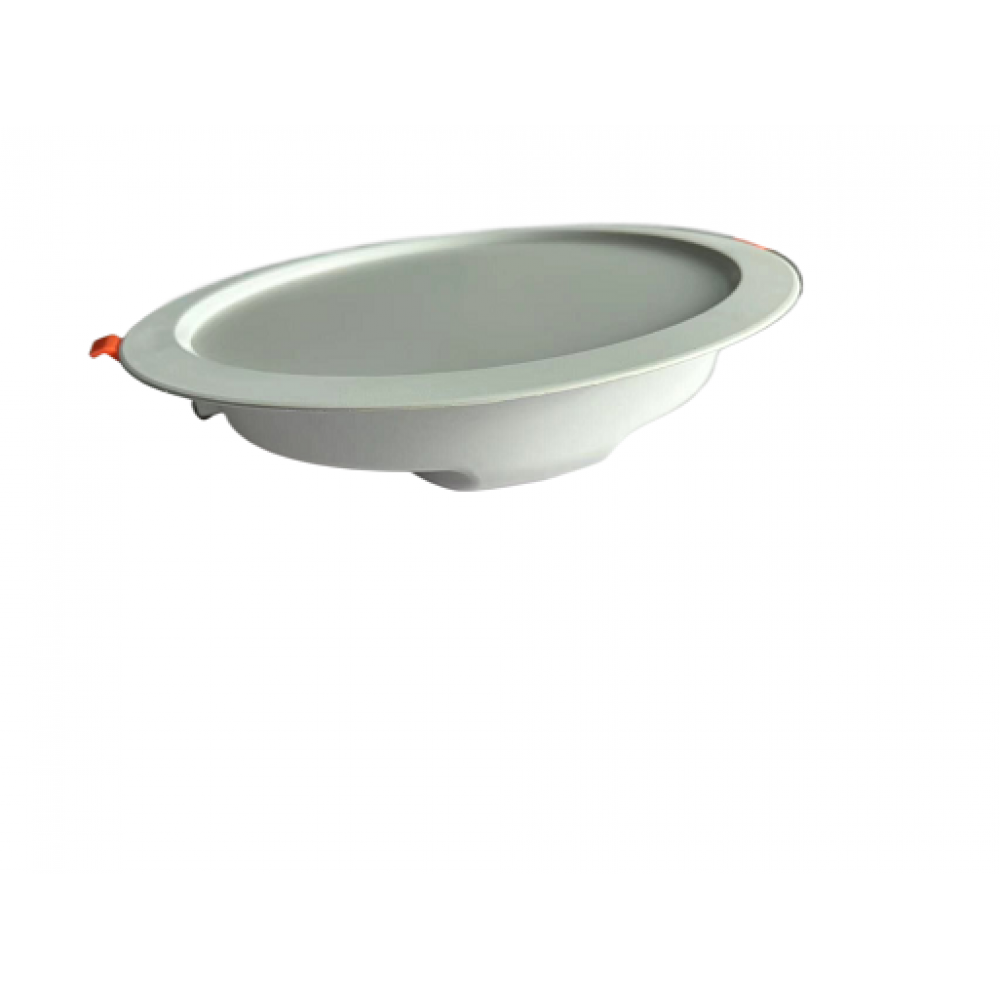

Installation method: Recessed.
Protection level: IP20.
Light category: ∥ class.
Light source type: SMD-DOB.
Shell body: PC+aluminum.
Diffuser: PC diffuser.
Driver: Adopting isolated flicker free constant current driver supply, different brands of driver supply can be selected.
Widely used in shops, hotels, offices, exhibition halls, restaurants and so on.
| Product Code | Voltage | Input/Output | CRI | CCT | IES | Lumen Output | Beam Angle | Dimensions (mm) | Cut Size (mm) | Inquiry |
 |
AC220-240V | 21/22.5W | ≥80 | 3000K 4000K 6500K | 2100LM 2200LM 2300LM | 120° | φ235*H50mm | φ200mm | ||
|
|
AC220-240V | 16W/17.5 | ≥80 | 3000K 4000K 6500K | 1600LM 1650LM 1700LM | 120° | φ180*H49mm | φ145mm | ||
|
|
AC220-240V | 11/12W | ≥80 | 3000K 4000L 6500K | 850LM 900LM 950LM | 120° | φ120*H48mm | Ø95mm | ||
|
|
AC220-240V | 6.6/6W | ≥80 | 3000K 4000K 6500K | 400LM 420LM 440LM | 120° | φ95*H47mm | φ70mm |
Lifud
OSRAM
