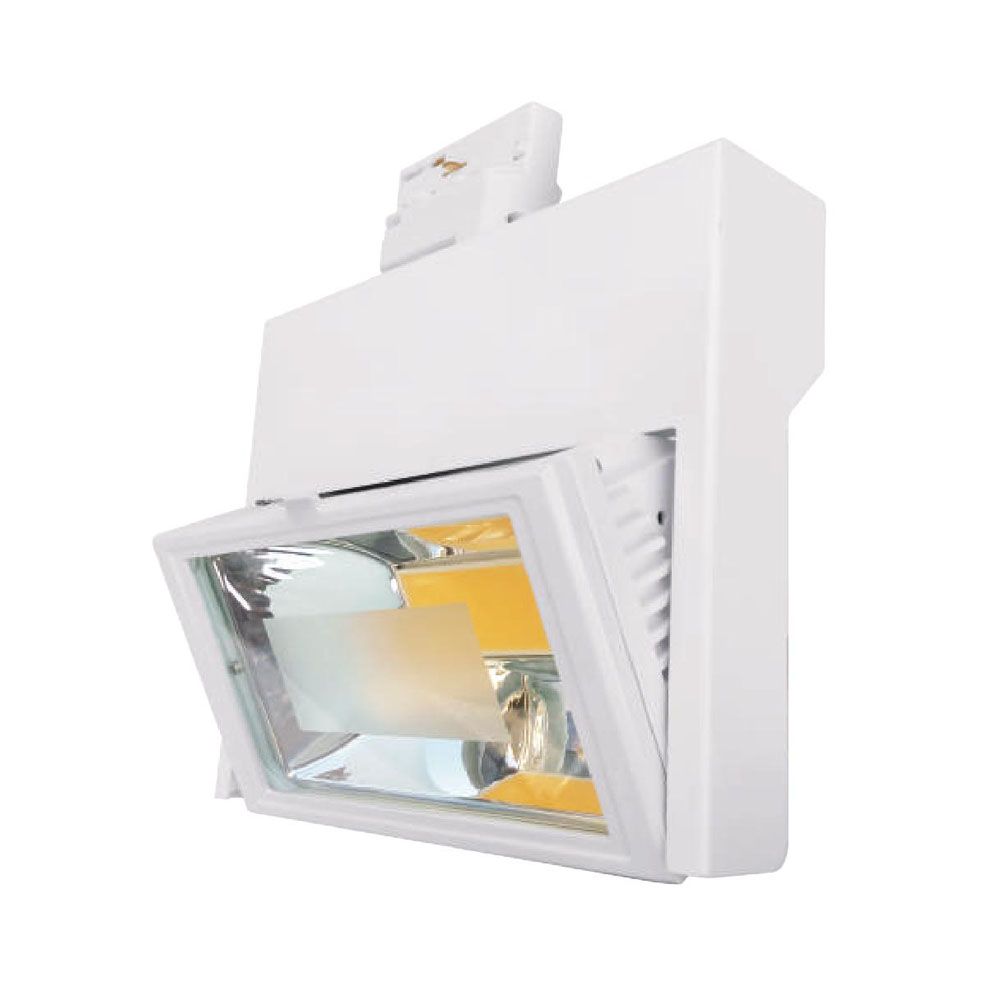

Item No.:WTR103D
Item Name:Track Lights
Specification

Light source:MCOB

Shell:adopts high-quality die-casted aluminum, performs well in cooling.

Shape: looks elegant and natural. The two movable rings can adjust at X and Y direction by ±40 degrees.

Reflector: professionally designed by TRACE-PRO according to reflection theory, the light can be performed in highest efficiency.

Diffuser: cover by glass, at 95% transmission rate.

Constant current control driver; outputs constant current, in low power consumption. It’s directly attached on the lamp shell.

Output light:constant, without glare. Light consumption is less than 3% after 2000 hours lighting.

Beam angle: 68,77 degrees

Widely used for main lighting, applied in shops, hotels, offices, exclusive shops, showrooms and so on.


Share this product :
Product Information
Product Code Function Voltage Input/Output CRI CCT IES Lumen
Output
Beam
Angle
Dimensions
(mm)
LED rail system Inquiry
WTR103D-3SL35W-TC
Standard AC100-240V 38.8W/34.2W ≥80

6400K

4000K

3000K

3675LM

3500LM

3325LM

68°/77° 220*90*250

3line

4line(optional)

DALI(optional)

WTR103D-3SL35W-MCT
Mechanical switch control CCT AC100-240V 38.8W/34.2W ≥80

6400K

4000K

3000K

3675LM

3500LM

3325LM

68°/77° 220*90*250

3line

4line(optional)

DALI(optional)

WTR103D-3SL35W-MCTDIM
Mechanical switch control CCT & dimmable AC100-240V 38.8W/34.2W ≥80

6400K

4000K

3000K

3675LM

3500LM

3325LM

68°/77° 220*90*250

3line

4line(optional)

DALI(optional)

WTR103D-3SL35W-SCT
Switch control CCT AC100-240V 38.8W/34.2W ≥80

6400K

4000K

3000K

3675LM

3500LM

3325LM

68°/77° 220*90*250

3line

4line(optional)

DALI(optional)

WTR103D-3SL35W-SCTDIM
Switch control CCT & dimmable AC100-240V 38.8W/34.2W ≥80

6400K

4000K

3000K

3675LM

3500LM

3325LM

68°/77° 220*90*250

3line

4line(optional)

DALI(optional)

WTR103D-3SL35W-RMCDIM
Intelligent remote control AC100-240V 38.8W/34.2W ≥80

6400K

4000K

3000K

3675LM

3500LM

3325LM

68°/77° 220*90*250

3line

4line(optional)

DALI(optional)

WTR103D-3SL35W-DIM
Triac dimmable AC100-240V 38.8W/34.2W ≥80

6400K

4000K

3000K

3675LM

3500LM

3325LM

68°/77° 220*90*250

3line

4line(optional)

DALI(optional)

WTR103D-3SL35W-DALDIM
DALI dimmable AC100-240V 38.8W/34.2W ≥80

6400K

4000K

3000K

3675LM

3500LM

3325LM

68°/77° 220*90*250

3line

4line(optional)

DALI(optional)

WTR103D-4SL50W-TC
Standard AC100-240V 53.6W/47.2W ≥80

6400K

4000K

3000K

5040LM

4800LM

4560LM

68°/77° 220*90*250

3line

4line(optional)

DALI(optional)

WTR103D-4SL50W-MCT
Mechanical switch control CCT AC100-240V 53.6W/47.2W ≥80

6400K

4000K

3000K

5040LM

4800LM

4560LM

68°/77° 220*90*250

3line

4line(optional)

DALI(optional)

Product description
