Location : Home>Products>Commercial>Down Lights
Loading...

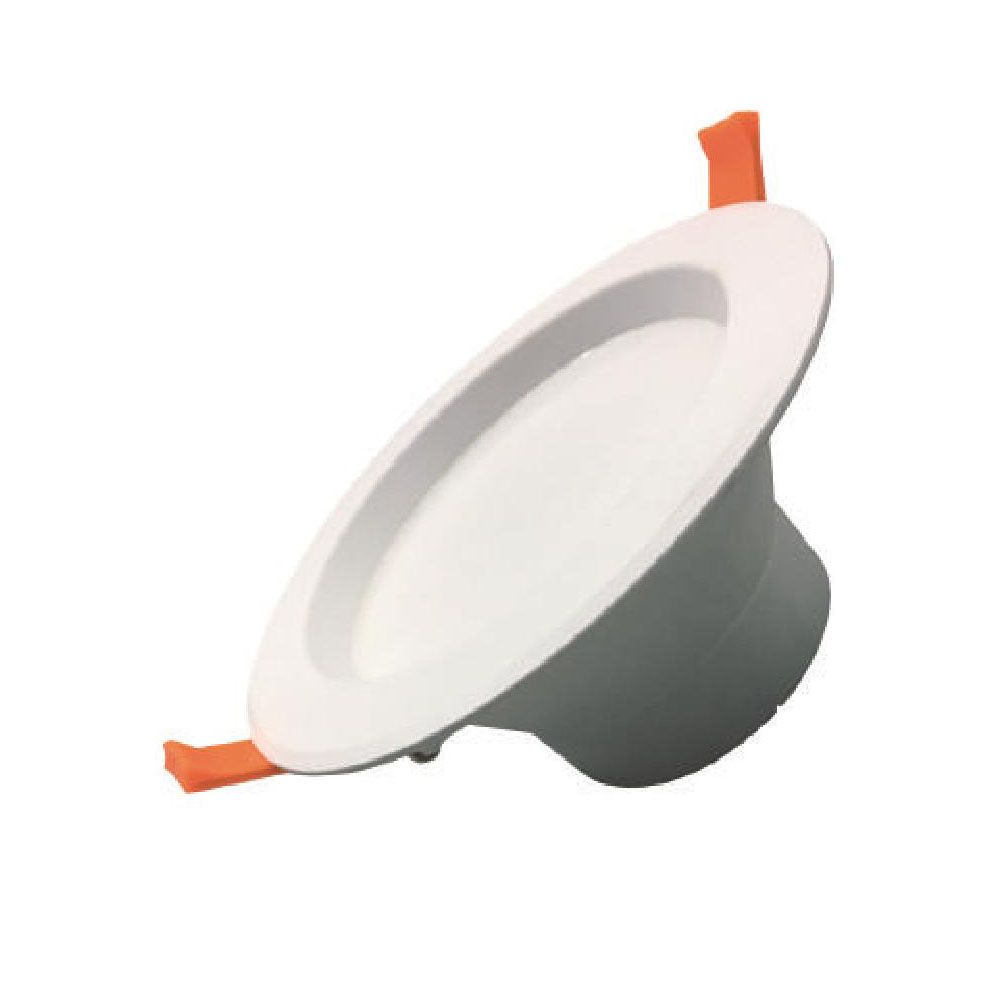

Item No.:WL6390-SL
Item Name:Down Lights
Specification

Light source:MCOB

Lamps shell adopts high-quality die-casted aluminum, performs well in cooling.

Shape:looks elegant and natural

Reflector:professionally designed by TRACE-PRO according to reflection theory, the light can be performed in highest efficiency.

It's available to apply in dimmable or emergency mode.

Remote constant current control driver; outputs constant current, in low power consumption.

Output light:constant, without glare. Light consumption is less than 3% after 2000 hours lighting.

Widely used for main lighting, applied in shops, hotels, offices, exclusive shops, showrooms and so on.

Body coatings:RAL9016 matt WH, matt grey, satin-Ni.


Share this product :
Product Information
Product Code Voltage Input/Output CRI CCT IES Lumen
Output
Beam
Angle
Dimensions
(mm)
Inquiry
WL6390-2SL7W
AC100-240V 8W/7W ≥80

6400K

4000K

3000K

880LM

840LM

800LM

120° Φ92*50
WL6390-3SL10W
AC100-240V 11W/10W ≥80

6400K

4000K

3000K

1210LM

1150LM

1090LM

120° Φ1135*65
WL6390-4SL15W
AC100-240V 17W/15W ≥80

6400K

4000K

3000K

1870LM

1780LM

1690LM

120° Φ145.5*72
WL6390-6SL20W
AC100-240V 23W/20W ≥80

6400K

4000K

3000K

2530LM

2400LM

2290LM

120° Φ182*85
WL6390-8SL25W
AC100-240V 28W/25W ≥80

6400K

4000K

3000K

3080LM

2930LM

2780LM

120° Φ235*91
